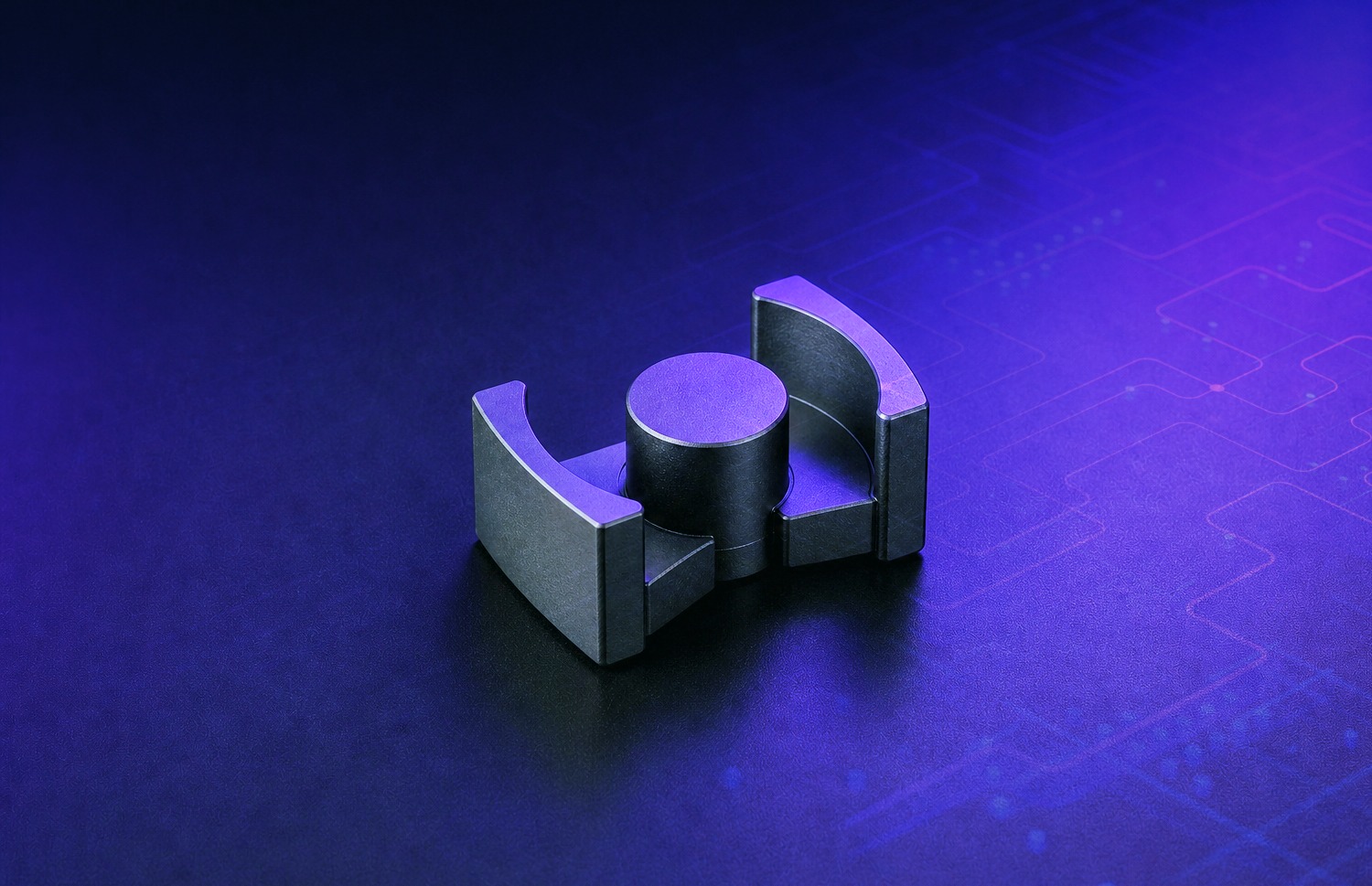

Next‑Gen Ferrite Cores for 1-5 MHz Planar Magnetics

Why 1-5 MHz Changes the Core Material Game

The 1-5 MHz band sits in an awkward but increasingly important place in modern power and signal architectures. It is high enough that traditional MnZn ferrites designed for sub‑500 kHz operation start to show steep loss curves, yet low enough that you still want the high permeability and compact size that ferrite cores offer. GaN and SiC devices can switch comfortably in this region, but unless the ferrite keeps up, the promised gains in power density and efficiency never fully materialize.

For planar magnetics, where copper paths are fixed in PCB or lead frame structures, core selection is even more critical. You have fewer degrees of freedom to “fix” a bad material choice later by changing geometry. That is why Payton’s engineering teams put so much emphasis on core material grade in their planar transformer design guide, explicitly calling out the need for low‑loss ferrites like 3F3/3F4 equivalents for higher‑frequency operation. At 1-5 MHz, that low‑loss requirement becomes the central design constraint rather than a nice‑to‑have.

Core Loss Mechanisms at 1-5 MHz

Why conventional ferrites struggle as frequency rises

Core loss in ferrites is typically decomposed into hysteresis, eddy current, and residual (or “excess”) loss components. In the 100-500 kHz range, modern power ferrites already have to balance these terms carefully; push into 1-5 MHz, and eddy and residual losses start to dominate even at relatively low flux densities.

Practical implications for planar transformers:

• To keep temperature rise under control, peak flux density B_max often must be reduced into the 20-60 mT range at 1-5 MHz, instead of the 150-200 mT designers might use at 100 kHz.
• That immediately demands larger core area or lower volt‑seconds per turn, which is why core material with genuinely low MHz loss becomes a competitive advantage.
• Loss vs. temperature matters more: many ferrites show loss minima around 60-100 °C, but MHz-optimized materials aim to keep loss flat or only slowly rising in that region to simplify thermal design.

Next‑generation MnZn ferrites engineered for MHz operation (often via careful grain size control and rare‑earth co‑doping) show significantly lower power loss at 1 MHz and beyond while preserving initial permeability in the 1000-3000 range. That combination is precisely what high-frequency planar transformers and inductors need.

What “good” MHz ferrite behavior looks like

Directional targets for 1-5 MHz ferrites used in planar magnetics often include:

• μ_i in the 1000-3000 range at 25 °C.
• Core loss density <150-250 mW/cm³ at 1 MHz, 30 mT, 20 °C, with manageable scaling up to 3-5 MHz under reduced flux swing.
• Stable permeability over operating temperature to avoid large inductance drift and detuning of resonant circuits.

Payton’s Ultimate Guide to Planar Transformers emphasizes that ferrite is not interchangeable; the material grade behind similar‑looking cores can change efficiency and thermal margins by several percentage points at high frequencies. At 1-5 MHz, that difference can be the line between a design that passes thermal and one that needs a complete re-spin.

MnZn vs. NiZn and Emerging MHz Ferrites

Comparing material families for 1-5 MHz

Historically, MnZn ferrites have been the default choice for power magnetics up to a few hundred kHz, thanks to their high permeability and relatively low loss. NiZn ferrites offer lower permeability but reduced losses at higher frequencies, making them more common in RF chokes, beads, and small‑signal transformers.

At 1-5 MHz, the line between “power” and “signal” starts to blur, especially in planar current transformers, gate-drive transformers, and low‑power DC/DC stages. Designers increasingly look at:

• Enhanced MnZn ferrites with tailored compositions and microstructures, optimized for high permeability and reduced loss around 1 MHz.
• High‑frequency NiZn grades where lower μ is acceptable but the priority is minimal loss at several MHz.
• Hybrid applications, where MnZn is used for bulk power transfer and NiZn or air‑core structures handle high‑frequency sensing or coupling.

Directional comparison table for 1-5 MHz

The table below gives a simplified, directional view of how material families position themselves in the 1-5 MHz space (values vary by specific grade and vendor):

For Payton’s high-frequency planar transformers, enhanced MnZn ferrites are typically preferred when the goal is to move several watts or kilowatts at 1-3 MHz with reasonable core volumes, especially in GaN‑based designs. NiZn grades find their place more in planar current transformers or signal coupling at the upper end of the MHz range, where inductance requirements are modest but bandwidth is critical.

Design Parameters that Matter Most At 1-5 MHz

Permeability, inductance and window utilization

At these frequencies, too much permeability can be as problematic as too little. Extremely high μ makes it easy to reach inductance targets with very few turns, but it also sharpens the slope of loss vs. flux density and can make the design sensitive to DC bias or small geometry changes. On the other hand, too low μ forces more turns, increasing copper loss and interwinding capacitance, especially in planar structures.

For planar magnetics, the design sweet spot often involves:

• Selecting ferrite grades with moderate to high μ (e.g., 1500-2500) so that inductance can be achieved in a compact winding window.
• Using interleaved layers and optimized copper thickness to manage AC losses at 1-5 MHz.
• Accounting for temperature and bias shifts in μ_eff so the inductance your PCB layout delivers under real conditions matches your simulations.

These are exactly the kinds of trade‑offs Payton’s engineers discuss in the planar magnetics datasheet guide, which explains how parameters like A_e, A_L and loss curves translate into real-world PCB and core geometries.

Flux density, loss density and thermal implications

As the article scope shifts from 100 kHz into the MHz regime, designers often need to:

• Reduce peak B_max to manage loss density and keep core temperatures within limits.
• Build realistic loss budgets that combine core and copper losses, not treating them in isolation.
• Pay special attention to cooling pathways, especially in planar magnetics where the core is coupled to the PCB and enclosure via relatively narrow contact regions.

Payton’s high‑frequency 15 kW planar transformer, although operating closer to 100 kHz, illustrates the methodology: carefully chosen ferrite material, validated loss curves, and deliberate thermal paths integrated into the PCB and system design. The same approach scales into 1-5 MHz, just with tighter constraints on allowable flux density and more emphasis on loss separation in the material data.

Core Selection Framework For 1-5 MHz Planar Designs

A practical, step‑by‑step approach

When selecting ferrite cores for 1-5 MHz planar transformers or inductors, a structured process helps avoid costly iterations:

1. Define the operating window: frequency range, temperature range, allowed flux density, and required inductance or magnetizing current.
2. Screen candidate ferrites: focus on materials with published loss data at or near 1 MHz and, ideally, higher (even if only at low flux).
3. Estimate core volume and temperature rise: use loss curves and your expected B_max to estimate mW/cm³ and resulting temperature increase for different core sizes.
4. Check permeability and bias behavior: ensure that effective μ under operating conditions still supports your inductance and ripple requirements.
5. Validate with planar constraints: confirm that window area, winding height, and mounting style align with your intended planar core families.
6. Prototype and measure: verify loss and temperature in hardware; adjust either material or geometry based on results.

Payton’s role in many projects is to embed this framework into a co-design process: working from the converter topology, target frequency, and mechanical envelope backward to a core material and geometry that make sense for manufacturable planar magnetics.

Where Next-Gen Ferrites Show the Most Impact

GaN and SiC high-frequency power supplies

As GaN and SiC move into MHz‑class converters (for example in compact adapters, EV auxiliary supplies, and high‑density server power) traditional ferrites quickly expose their limits. Next‑generation MnZn ferrites optimized for 1 MHz+ operation enable:

• Smaller cores for a given power level.
• Controlled temperature rise with realistic cooling.
• Planar transformers that can run at 500 kHz-2 MHz without sacrificing long‑term reliability.

These are precisely the kinds of applications described in Payton’s material on high‑frequency planar transformers and related application notes.

Planar current transformers and sensing

Beyond power transfer, 1-5 MHz ferrites are increasingly important in planar current transformers and sensing transformers, where bandwidth and linearity matter as much as loss. Here, a mix of:

• High‑frequency MnZn (for sensitivity)
• NiZn or air‑core structures (for bandwidth and low loss)

can give designers a flexible toolbox for current measurement and protection in compact, planar layouts that integrate directly into the main PCB.

Conclusion: Core Materials as a Strategic Design Lever

At 1-5 MHz, ferrite is no longer a background choice; it is a strategic design lever that can unlock, or quietly limit, what your planar magnetics can achieve. Next‑generation MnZn and high‑frequency NiZn ferrites provide the low loss, controlled permeability and thermal behavior that high‑density, GaN‑driven systems demand, especially when deployed in planar transformers and inductors.

For teams planning the next generation of high‑frequency power or sensing hardware, the most effective move is to treat ferrite selection as part of system‑level architecture. Combining realistic loss modeling with a co‑design process around planar core families and design guides will help ensure that the chosen material supports your 1-5 MHz ambitions instead of working against them.
