Planar Transformers Family
Payton Group
> Planar Transformers
* All items are for reference only, for more specific information please fill the RFQ
5 to 15W Planar Transformers
Power capacity 5 to 15W Low power, Low profile, High efficiency, excellent repeatability. Size 14
10 to 40W Planar Transformers
Power capacity 10 to 40W Low power, Low profile, High efficiency, excellent repeatability. Size 20
25 to 100W Planar Transformers
Power capacity 25 to 100W Low power, Low profile, High efficiency, excellent repeatability. Size 25
25 to 140W Planar Transformers
Power capacity 25 to 140W Low power, Low profile, High efficiency, excellent repeatability. Size 40
50 to 400W Planar Transformers
Power capacity 50 to 400W Low to medium power, Low profile High efficiency. Size 50
80 to 600W Planar Transformers
Power capacity 80 to 600W Medium power, Low profile, High efficiency, excellent repeatability. Size 55
30 to 500W Planar Transformers
Power capacity 30 to 500W Medium power, Low profile, High efficiency, excellent repeatability. Size 71
200 to 1000W Planar Transformers
Power capacity 200 to 1000W Medium power, Low profile, High efficiency, excellent repeatability. Size 80
300 to 1000W Planar Transformers
Power capacity 300 to 1000W Medium power, Low profile, High efficiency, excellent repeatability. Size 200
500 to 2.6kW Planar Transformers
Power capacity 500 to 2.6kW Medium to High power, Low profile, Unique insulation solution. Size 250

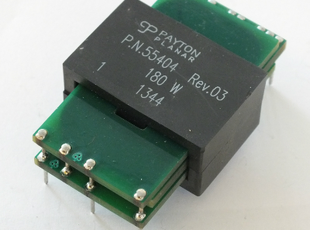

500 to 5kW Planar Transformers
500 to 5kW Planar Transformers
1kW to 10kW Planar Transformers
Power capacity 1kW to 10kW Medium to High power, Low profile, Unique insulation solution. Size 270
200 to 1400W Planar Transformers
Power capacity 200 to 1400W Low to Medium power, Low profile, Unique insulation solution. Size 125
250W to 2.1kW Planar Transformers
Power capacity 250W to 2.1kW Medium to High power, Low profile, Unique insulation solution. Size 541
500W to 3.5kW Planar Transformers
Power capacity 500W to 3.5kW Medium to High power, Low profile, Unique insulation solution. Size 551
1.8 to 7.5 kW Planar Transformers
Power capacity 1.8 to 7.5 kW High power, Low profile, Unique insulation solution, High efficiency. Size 564
1kW to 10kW Planar Transformers
Power capacity 1kW to 10kW High power, Low profile, Unique insulation solution, High efficiency. Size 1000

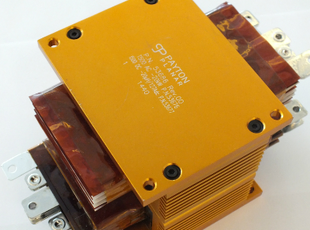

5kW to 20kW Planar Transformers
Power capacity 5kW to 20kW High power, Low profile, High efficiency, excellent repeatability. Size 5000
