High-Power Planar Transformer for Next-Generation Conversion
15 kW Planar Magnetics for Demanding Systems

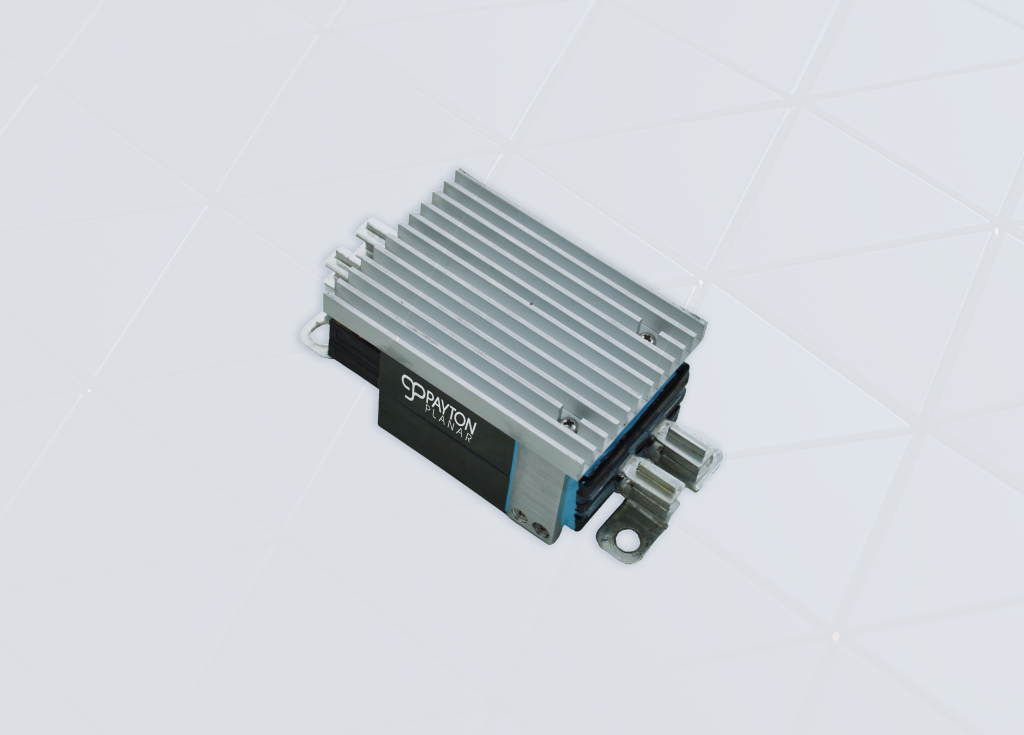

As power designs push for higher efficiency, greater power density, and tighter thermal margins, planar magnetics have become a key enabler in advanced conversion architectures. Payton’s 15 kW high‑frequency planar transformer is built to answer these demands, combining robust insulation, controlled parasitics, and repeatable performance for high-reliability applications.
Topology, Operating Range, and Core Performance
The transformer is optimized for a full‑bridge phase-shift topology with voltage‑doubler rectification, running from a 325-450 Vdc bus at 100 kHz. It delivers 15 kW of output power while maintaining low DC resistance, tightly controlled leakage inductance of around 1 µH, and high dielectric strength. Parameters that are essential for stable, high-voltage, high-power operation.
Planar construction ensures consistent electrical behavior from unit to unit, while carefully engineered copper geometry minimizes conduction losses and supports high efficiency. In conjunction with forced-air cooling, the design keeps hot-spot temperatures under control so that performance remains predictable even under sustained high‑current loading.
Design Advantages and Application Fit
This 15 kW planar transformer offers high power density in a compact footprint, tuned specifically for high-efficiency full-bridge converters at elevated switching frequencies. Low leakage inductance, reduced copper losses, and a controlled thermal profile help designers meet aggressive size and efficiency targets without compromising reliability.
Reinforced insulation and high dielectric strength support use in harsh or high-voltage environments, while the mechanically robust, production-ready design aligns with industrial manufacturing requirements. Payton’s planar solutions are adapted to sector-specific needs across industrial, renewable, and other high‑performance power conversion markets.
Engineered Power Solutions Under One Roof
Beyond individual components, Payton focuses on delivering complete magnetic solutions tailored to each customer’s electrical, mechanical, and thermal specifications. With design, prototyping, and production integrated in a single organization, Payton provides end-to-end accountability and scalable support from concept through long-term deployment.
At Payton Planar Magnetics, magnetics are engineered as a strategic part of the power architecture: designed for performance, scalability, and long‑term reliability in demanding applications.
