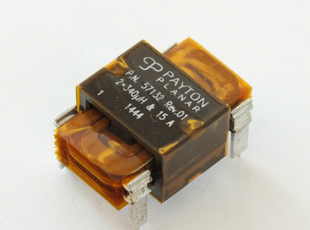

Common Mode Choke
Description
Payton Common Mode Chokes provide an effective, compact, planar solution for excellent suppressing common mode noise from switch mode power supplies lines. The components have very high repeatability, low profile and weight, low leakage flux, and high impedance at applicable frequency.
Physical Characteristics
| DIMENSIONS (mm) | TYPICAL WEIGHT | OPERATING TEMPERATURE | TEMPERATURE RISE | TERMINALS |
|---|---|---|---|---|
L=29 | 40 gr. max. | -55 °C - +90 °C | 40 °C max. | SMT/TROUGH HOLES |
Typical Electrical Characteristics
| Characteristic | Value |
|---|---|
| Inductance range | 60µH - 1000µH |
| Operating frequency | 50kHz-3MHz |
| Rated DC current range | 4A-300A |
| Peak current for 1 sec. | Up to 20%-30% I nominal |
| DC resistance range | 3-18 mOhm |
| Dielectric strength with standing voltage (between windings) | 500 Vrms |
| Leakage to nominal Inductance ratio | ≤8.10-3% |
| Interwinding capacitance range | 200 pF-700 pF |
Typical Thermal Impedance For Different Cooling Conditions
| NATURAL COOLING (Hot Spot - Air) | BLOWING AIR 3m/sec (Hot Spot-Air) | ONE SIDE HEATSINK (Hot Spot - Heatsink) | TWO SIDES HEATSINK (Hot Spot-Heatsink) |
|---|---|---|---|
| 22 °C/W | 12 °C/W | 7 °C/W | 3.5 °C/W |

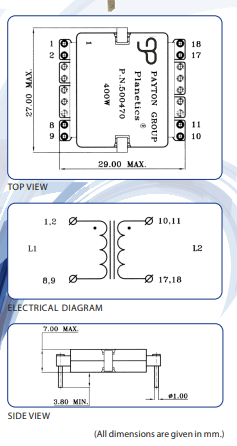

EXAMPLE: Common Mode Choke P.N. 500470
This I055-3-3 high inductance, high current, low leakage, high efficiency and small dimensions planar common mode choke is developed for suppressing common mode noise from switch mode power supplies lines, providing the following specifications:
| Common Mode Choke Specifications | Value |
|---|---|
| Inductance L1, L2 | 330µH ±30% |
| Rated DC Current | 20A |
| Operating Frequency | 300 kHz. |
| Peak Current for 1 sec. | 60Adc |
| Dielectric strength (between L1+L2 to core) | 500 Vrms |
| Power losses (With 90 °C heat sink) | 2.7W |
| Ambient temperature | -55 °C to +90 °C |
| Hot spot temperature (With 90 °C heat sink) | 115 °C |
| Weight | 20 gr. |
